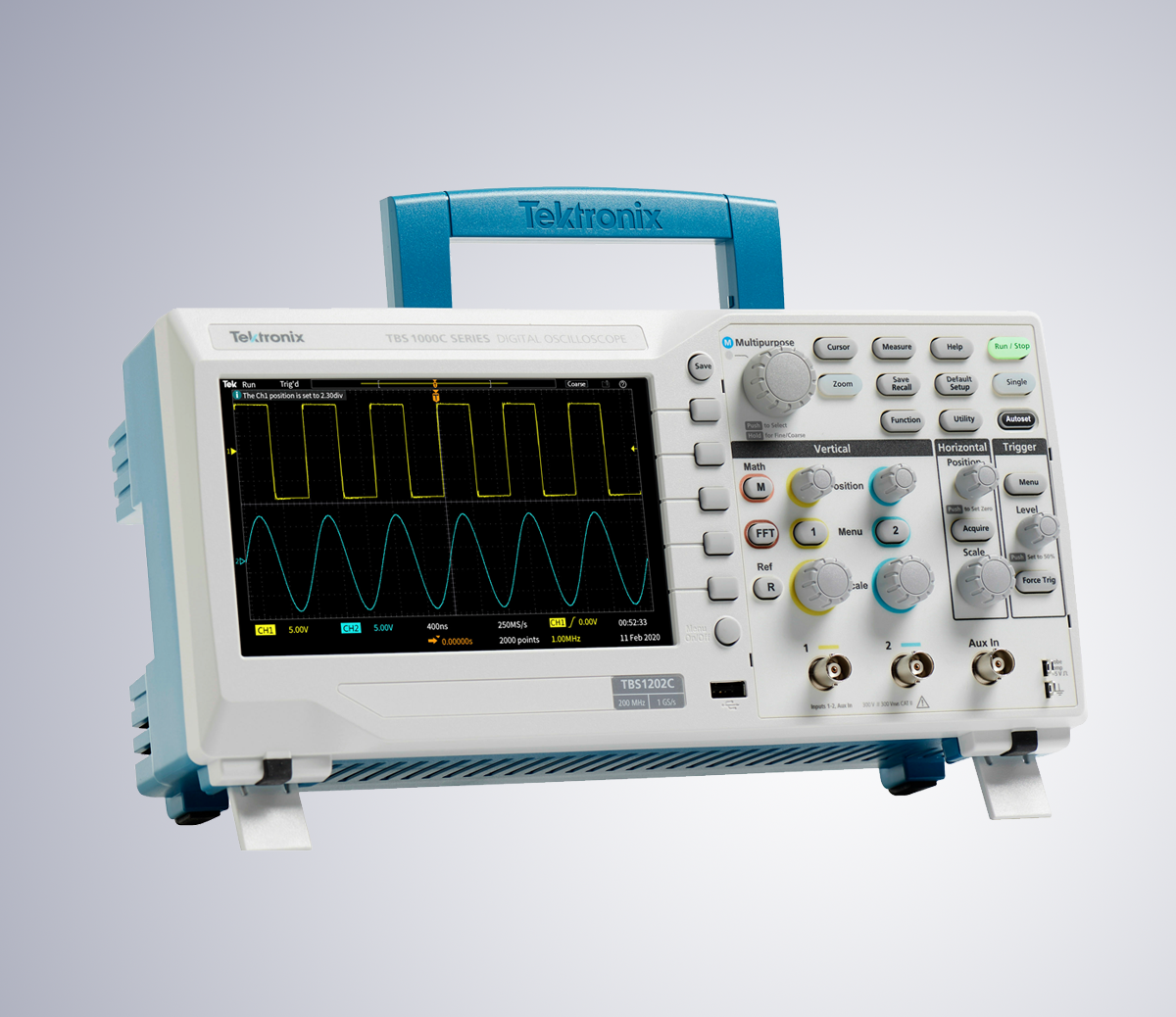

Tektronix TBS1072C
Tektronix Entry Level Oscilloscope
Channels: 2 Analog
Bandwidth: 70 MHz
Sample Rate: 1 GS/s
Record Length: 20 K points
Description
Manage everyday test challenges faster without challenging your budget
With its combination of features and capabilities, the TBS1000C is designed so you can learn and work faster at a very affordable price.
- 7-inch WVGA color display with 15 horizontal divisions shows 50% more signal
- 32 automated measurements enable fast and convenient testing of a wide variety of signal conditions
- Dual window FFT with simultaneous time and frequency domain views to understand signal frequency content
- Disable autoset cursors and measurements
- Trigger frequency counter
- Pan and zoom capability to quickly see signal details in an area of interest
- Multi-language user interface with support for ten languages in the user interface and front panel overlay
- Small footprint and light weight
- Fanless design for low noise operation
Educate tomorrow's leading engineers with today's powerful learning tools
Every TBS1000C is equipped with special features that make learning easier, so educators can focus on teaching engineering fundamentals, rather than teaching how to use the oscilloscope.
- HelpEverywhere provides on-screen tips that explain different instrument settings
- Built-in oscilloscope handbook provides operating instructions and oscilloscope fundamentals
- Integrated courseware provides lab exercise guidance on the display
- Autoset, cursors, and automated measurements can be disabled to help educators teach basic concepts to students
New features that make the best scopes better
- 7-inch WVGA color display with 15 horizontal divisions to display 50% more signal
- Compact design; improved user and programming interface
- Integrated courseware system integrates lab exercises with step-by-step instructions for students
- HelpEverywhere® system provides useful tips and hints throughout the user interface
- Triggering and acquisition modes for troubleshooting a variety of mixed signal designs
- Educators can disable the autoset, cursors, and automated measurements to facilitate teaching basic concepts
Get oscilloscope waveform analysis capabilities right on your PC
Analyze waveforms anywhere, anytime with TekScope PC analysis software. Educators and engineers alike will appreciate the ability to measure and control waveform data from any location and share with remote colleagues and classmates.
- Recall and view waveforms, perform cursor and automated measurements, create time trends, histograms and spectrum views for free in the base package
- Use as teaching / learning aid to for Oscilloscopes and basic signal analysis
- Perform basic instrument control, waveform transfer, analysis and protocol decode on a TBS1000C / TBS2000B oscilloscope with TEKSCOPE-ENTRY license
Specifications
Input Channels
- 2 analog
Bandwidth
- 70 MHz
Sample Rate
- 1 GS/s
Record Length
- 20 K points
Vertical system - Analog channels
Vertical resolution
8 bits
Input sensitivity range
1 mV/div to 10 V/div max. in 1-2-5 sequence with probe attenuation set to 1X
DC gain accuracy
±3.0 % step gain, derated at 0.1 %/°C above 30 °C
Maximum Input Voltage
300 VRMS, Installation Category II; derate above 4 MHz at 20 dB per decade to 200 MHz
Offset range
1 mV/div to 50 mV/div: ± 1 V
100 mV/div to 500 mV/div: ± 10 V
1 V/div to 5 V/div : ± 100 V
Bandwidth limit
20 MHz (Typ)
Input coupling
DC, AC
Input impedance
1 MΩ ±2 % in parallel with 14 pF ±2 pF
Vertical zoom
Vertically expand or compress a live or stopped waveform
Sample
Acquire sampled values
Peak Detect
Captures glitches as narrow as 4 nsec at all sweep speeds.
Average
From 2 to 256 waveforms included in average.
Hi-Resolution
Averages multiple sample of one acquisition interval into one waveform point.
Roll
Scrolls waveforms right to left across the screen at sweep speeds slower than or equal to 40 ms/div
Horizontal system - Analog channels
Timebase accuracy
20 ppm
Timebase range
TBS1202C, TBS1052C, TBS1072C, TBS1102C
2 ns/div to 100 sec/div in a 1-2-4 sequence
Horizontal zoom
Horizontally expand or compress a live or stopped waveform
Deskew range
± 100 nsec
External trigger input
Included on all models
Trigger modes
Auto, Normal, Single Sequence
Trigger Types
Edge, Pulse Width, Runt, Trigger source, Trigger Coupling, Trigger signal frequency readout
Waveform measurements
Cursors, 32 Automated measurements, Gating
Waveform math
Arithmetic, FFT
Display system
- Display Type: 7-inch TFT Color Display
- Display Resolution: 800 horizontal by 480 vertical displayed pixels (WVGA)
- Waveform styles: Vectors, Variable persistence, and Infinite persistence.
- Format: YT and XY
Input Output Ports
- USB 2.0 Host Port: Supports USB mass storage devices
- USB 2.0 device port: Rear-panel connector allows for communication/control of oscilloscope through USBTMC or GPIB with a TEK-USB-488
- Amplitude: 5 V
- Frequency: 1 KHz
- Kensington Style Lock: Rear-panel security slot connects to standard Kensington style lock
Power
- Power source: 100 to 240 VAC RMS ±10%
- Power source frequency:
- 45 Hz to 65 Hz (100 to 240 V)
- 360 Hz to 440 Hz (100 to 132 V)
- Power consumption: 30 W maximum
Typical applications
Education
The TBS1000C Oscilloscope offers new features that enable educators to devote more time to teaching engineering concepts and less time on lab setup and management.
- Built-in Courseware Lab Viewer
- HelpEverywhere system with on-screen tips and hints throughout the user interface
- Ability to independently disable AutoSet, Cursors and Measurements
- Five-year warranty as standard
- Kensington lock
Embedded Design
The TBS1000C Oscilloscope provides the embedded design engineer with a 7-inch WVGA display that shows 50% more horizontal signal with 15 divisions.
- Easily and quickly pan and zoom to quickly see signal details in areas of interest
- 32 automatic measurements enable you to measure the most commonly needed parameters
- Built in FFT for quick frequency domain analysis
